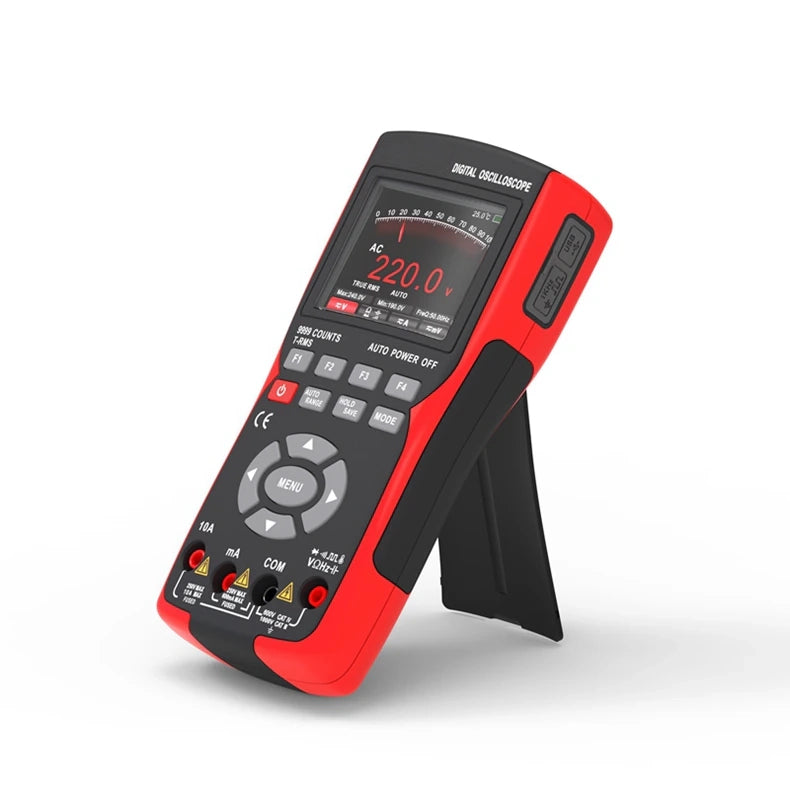

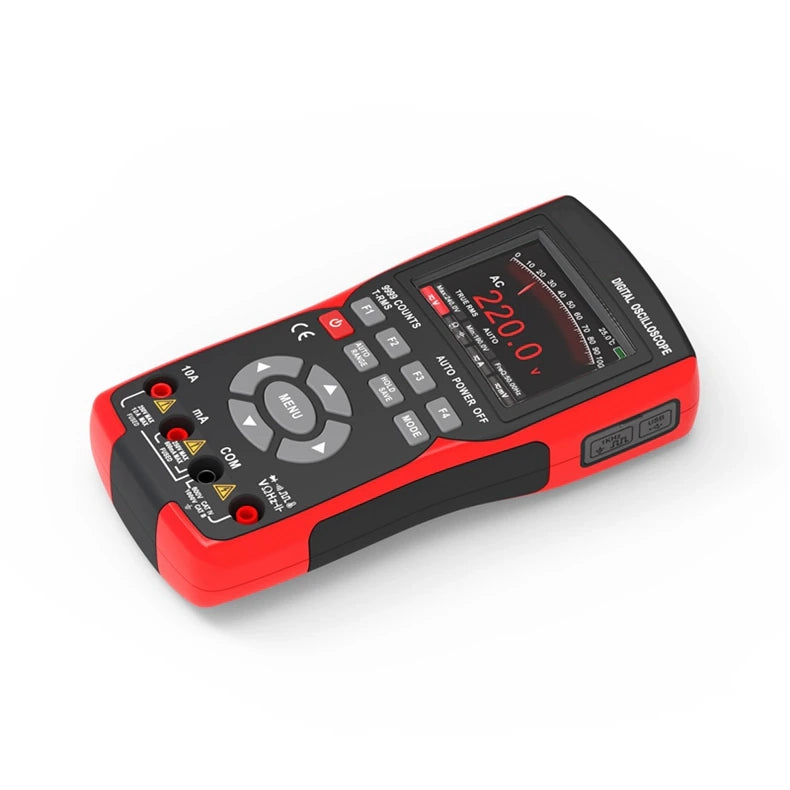

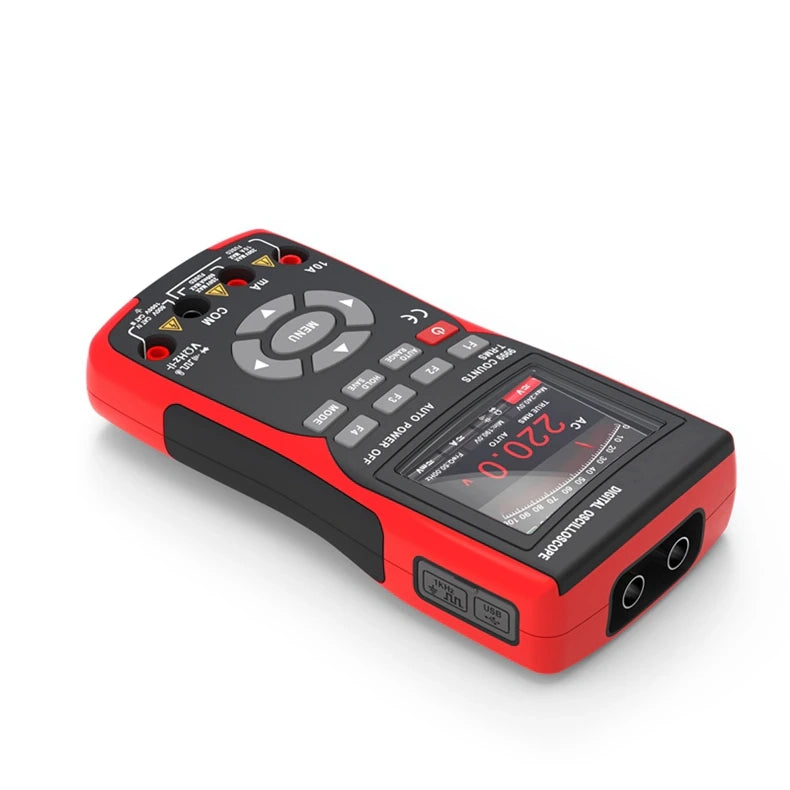

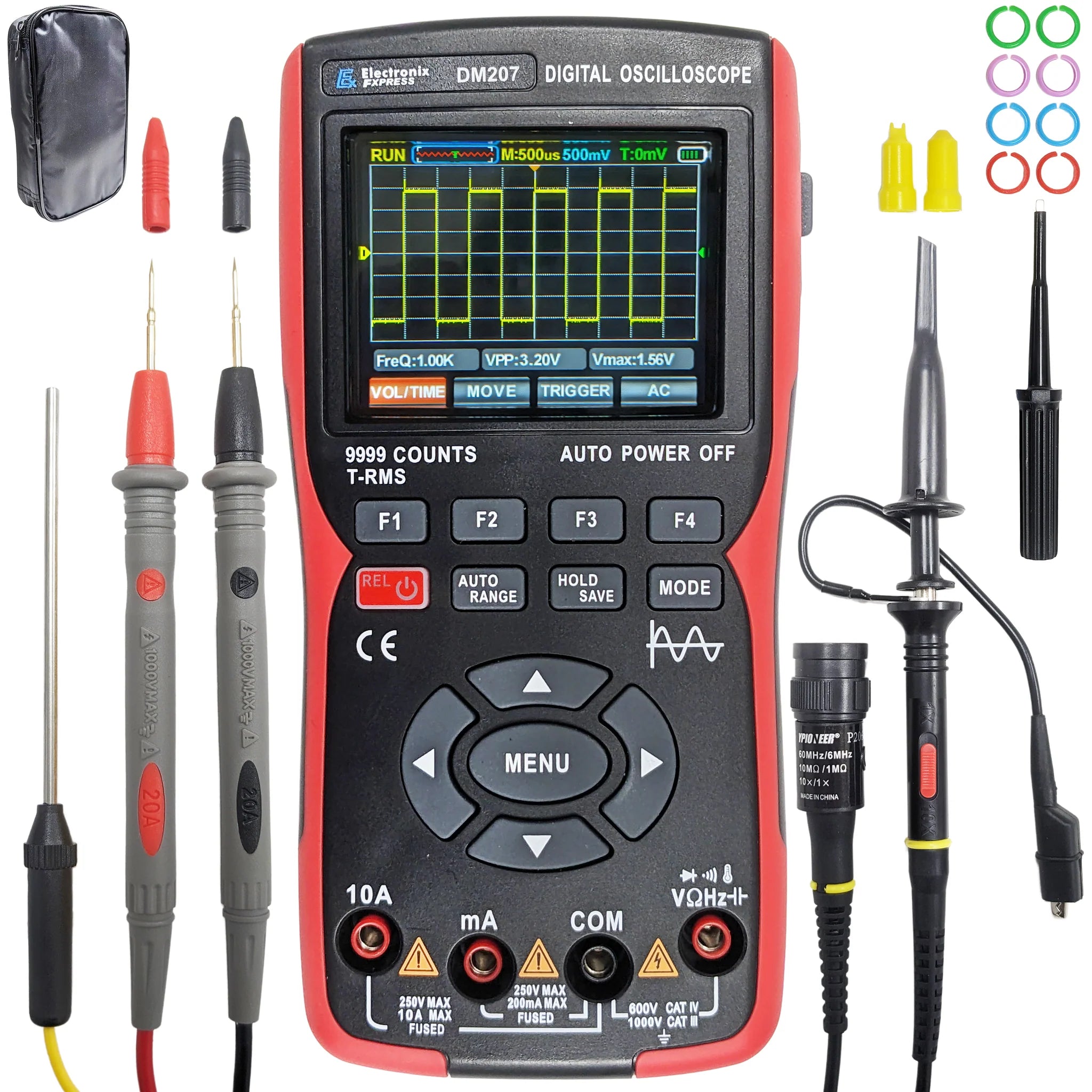

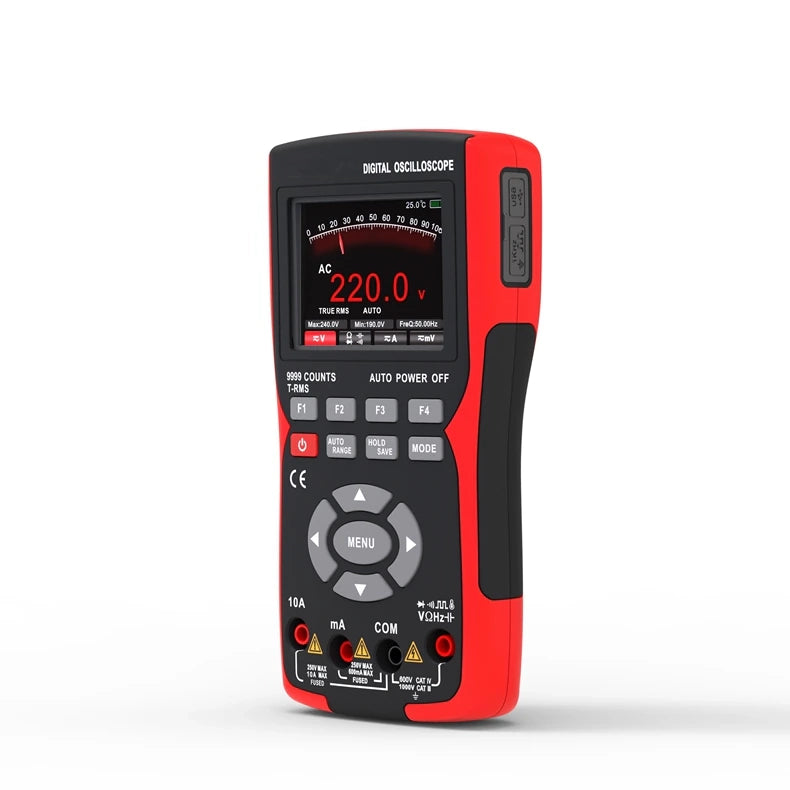

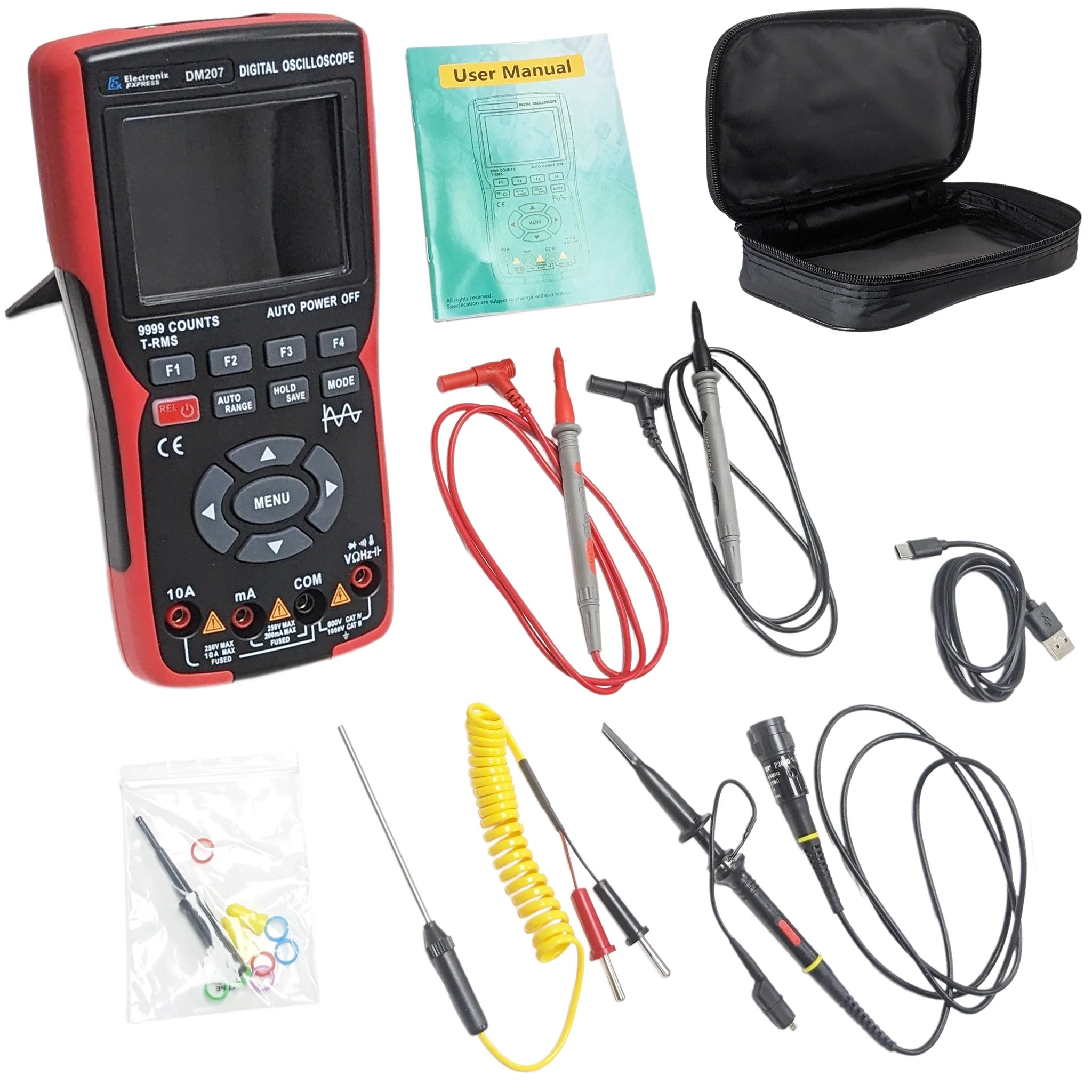

This True RMS Digital Multimeter features 10MHz bandwidth oscilloscope, MODE key switches to switch between the digital multimeter and oscilloscope, Waveform data storage and formatting, brightness adjustment and shutdown time settings, and the ability to export pictures with a sampling rate of 48M/s and a 64Kpts PC transmission. This multimeter has a 9999 Counts Ranging LCD, Auto/Manual ranging, ABS+TPE material, 3 times/second update rate, True RMS, data hold, backlight, low battery indication, and auto power off.
Features:

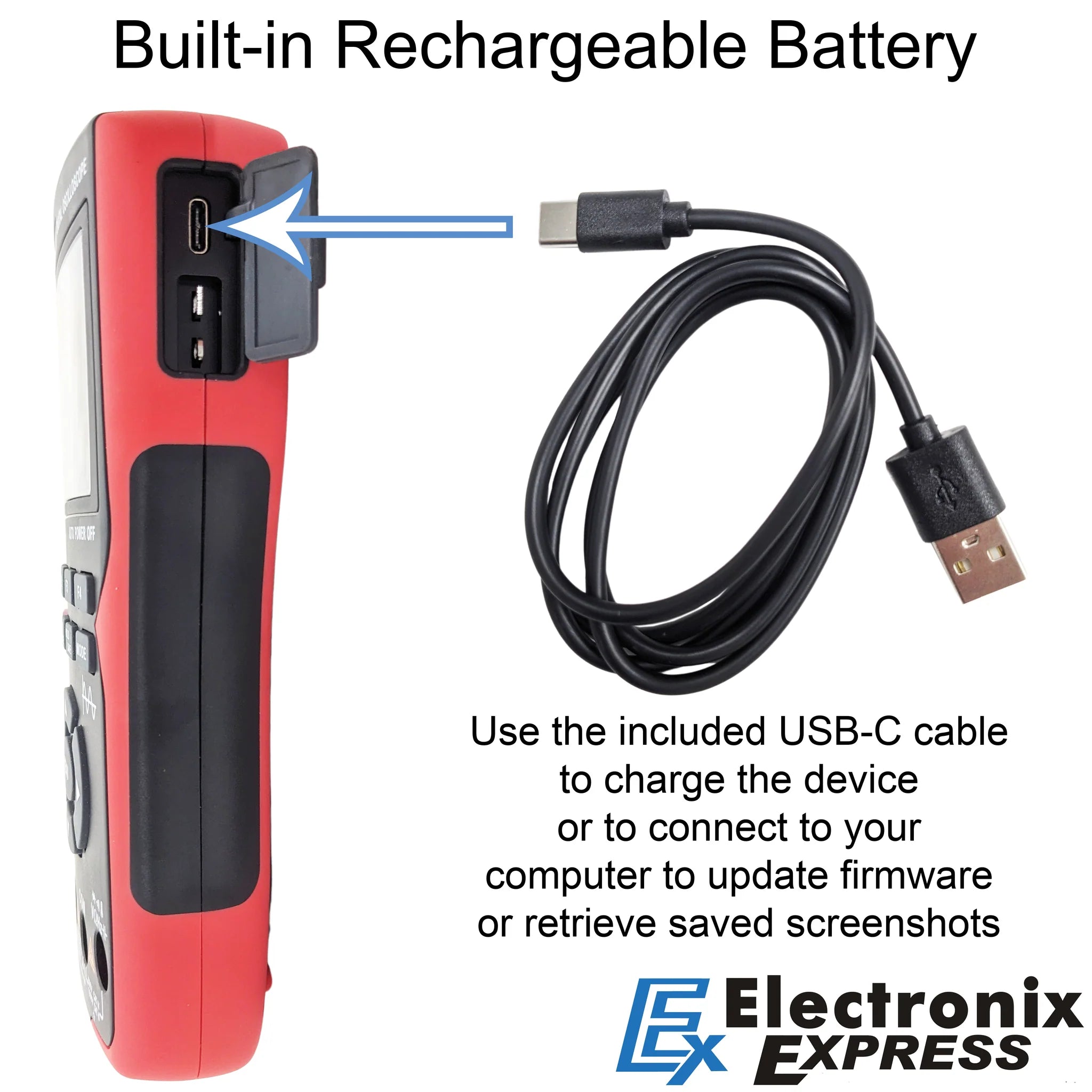

- 10MHZ bandwidth plus 18650 lithium battery charging

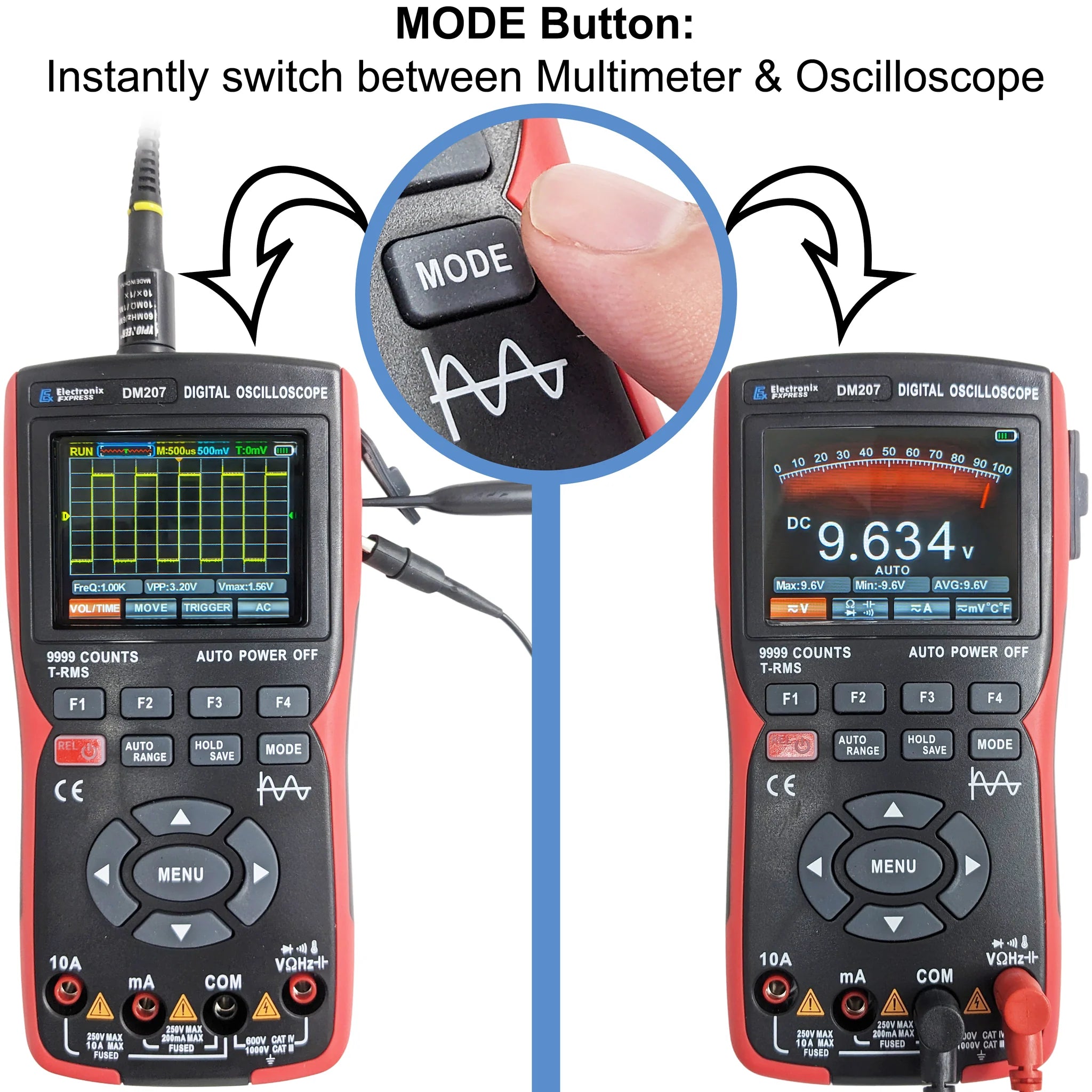

- MODE key switches the mode of digital multimeter and oscilloscope
- Waveform data storage and formatting
- Customize brightness adjustment and shutdown time Settings
- Exported in the form of pictures, sampling rate 48M/S storage depth 64Kpts PC transmission
- DisplayLCD: 9999 Counts
- Ranging: Auto/Manual
- Material: ABS+TPE
- Update Rate: 3 Times/Second
- Ture RMS: Yes
- Data Hold: Yes
- Backlight: Yes
- Low Battery Indication: Yes
- Auto Power Off: Yes
Meter Specifications:
- Display: 9999 counts
- Screen Size: 2.8 inch
- Bandwith: 10MHz
- Real-time smaple rate: 48MSa/s
- Input Impedance: 1MΩ,@16pf
- Maximum input voltage: 400V (DC+AC peak)
- Horizontal SEC range: 50ns/div -20s/div
- Vertical sensitivity: 20mV/div -10V/div
- DC voltage:
- 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V ±(0.5%+3)
- AC voltage:
- 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V ±(1.0%+3)
- DC current:
- 9999μA/99.99mA 1μA/0.01mA ±(0.8%+3)
- 999.9mA/9.999A 0.1mA/0.001A ±(1.0%+3)
- AC current:
- 9999μA/99.99mA 1μA/0.01mA ±(1.0%+3)
- 999.9mA/9.999A 0.1mA/0.001A ±(1.2%+3)
- Resistance:
- 99.99Ω0.01Ω ±(1.0%+3)
- 999.9Ω/9.999kΩ/99.99KΩ/999.9KΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ ±(0.5%+3)
- 9.999MΩ 0.001MΩ±(1.5%+3)
- 99.99MΩ 0.01MΩ ±(3.0%+5)
- Capacitance:
- 9.999nF 0.001nF ±(5.0%+20)
- 99.99nF/999.9nF/9.999µF/99.99µF/999.9µF 0.01nF/0.1nF/0.001µF/0.01µF/0.1µF ±(2.0%+5)
- 9.999mF 0.001mF ±(5.0%+5)
- Frequency:
- 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000MHz 0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz/0.001MHz ±(0.1%+2)
- Temperature: -20℃-1000℃/-4℉-1832℉ ±(2.5%+5)
- Diode: Yes
- Continuity: Yes
- Power: 18650 Battery

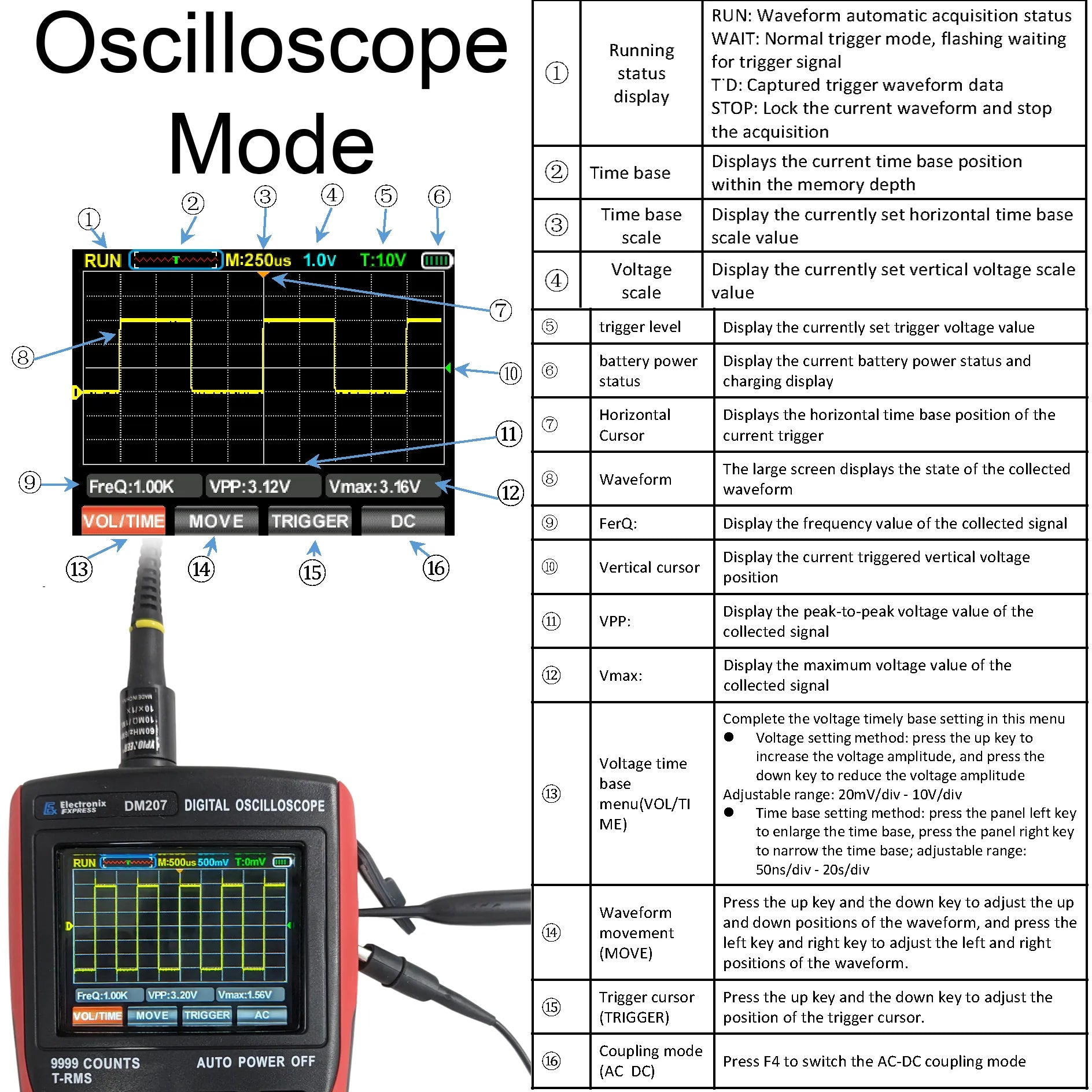

Oscilloscope Specifications:
Characteristic | Instructions | |
Bandwidth | 10MHZ |
|
Sampling | Sampling Method | Real Time |
| Real Time Sample Rate | 48MSa/s |

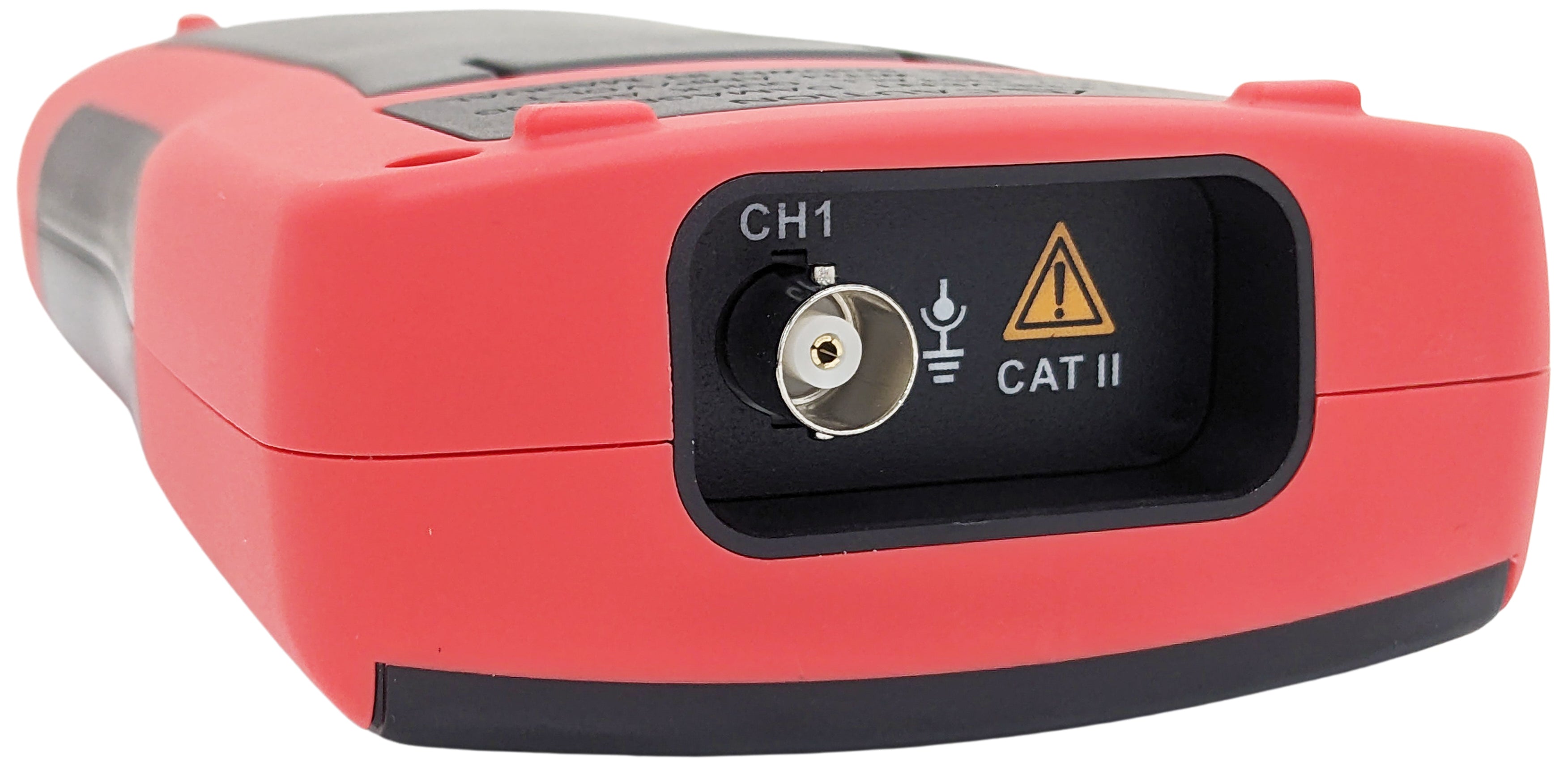

Channels | 1 |
|
Input | Input Coupling | AC/DC |
Input Resistance | 1MΩ, @16pf | |
Probe Attenuation | X1, X10 | |
Max Input Voltage | 150V (DC+AC Peak) | |
Horizontal | Sample Rate Range | 1.5Sa/s – 48MSa/s |
Waveform Interpolation | (sinx)x | |
Sweep Speed Range | 50ns/div – 20s/div | |
Time Base Accuracy | 20ppm | |
Record Length | Max 64Kbyte | |
Vertical | Sensitivity | 20mV/div -10V/div |
Displacement Range | 4 Cells (+ve & -ve) | |
Analog Bandwidth | 10MHz | |
Low Frequency Response | >10Hz | |
Rise Time | <10ns | |
DC Gain Accuracy | ±3% | |
Measurement | Automatic | Period, Frequency, Peak to Peak Value, Max Value, Min Value, Effective Value |
Trigger | Trigger Method | Auto, Normal, Single |
Trigger Edge | Rising, Falling | |
Datasheet
