The FS90R is a special servo made for continuous rotation. It can make full revolutions forward or backward, which makes it great for projects such as driving wheels on a small robot.
The FS90R servo includes an adjustment potentiometer to calibrate the middle-point (stopped) setting. Calibrate this setting by sending a 1.5ms (1500µs) pulse signal (position "90" when used with the Arduino Servo library), then slowly turn the middle-point adjustment potentiometer until the servo stops rotating. Access the middle-point adjustment potentiometer by inserting a small screwdriver into the hole in the bottom of the servo, see diagram below.

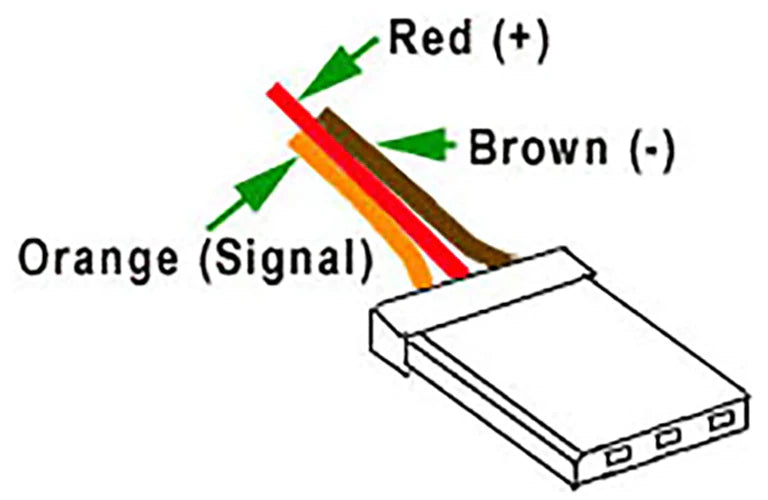

The servo's cable has a standard JR-style connector on the end.
PRODUCT CONTENTS:
- 1 — FEETECH (formerly Fitec) FS90R Continuous Rotation Servo
- 1 — straight single-ended servo horn
- 1 — straight double-ended servo horn
- 1 — winged straight double-ended servo horn
- 1 — four-pointed star servo horn
- 1 — round servo horn
- 1 — servo horn screw
- 2 — FS90R servo mounting screws
| Operating Voltage | |
4.8V | 6.0V | |
Stall Torque | 1.3 kg/cm | 1.5 kg/cm |
Max Speed | 110 RPM | 130 RPM |
Idle Current | 5 mA | 6 mA |
No Load Running Current | 100 mA | 120 mA |
Stall Current | 550 mA | 650 mA |
Operating Voltage Range | 4.8V to 6V | |
Pulse Width Range | 700 to 2300 µs | |
Dead Band Width | 90 µs | |
Stop Signal | 1500 (±45) µs | |
CW Rotation Signal Range | 700 to 1500 µs | |
CCW Rotation Signal Range | 1500 to 2300 µs | |
Internal Gears | Plastic | |
Cable Length | 23 cm (9.06") | |

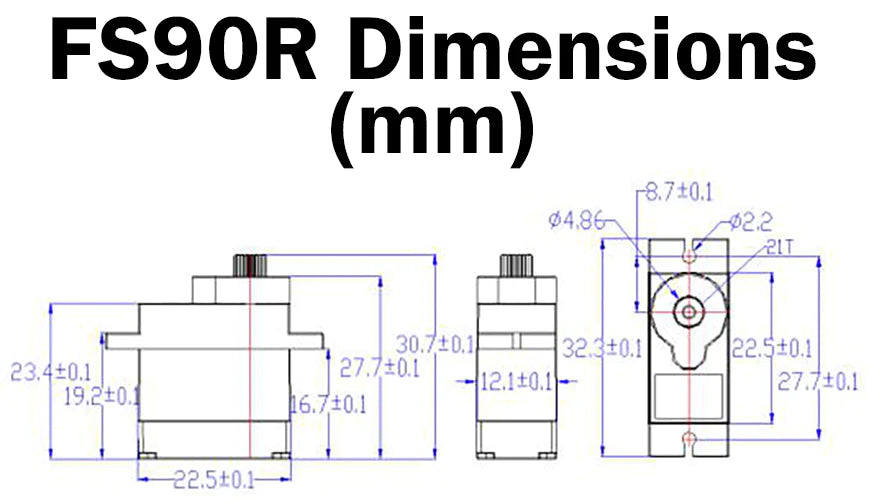

Dimensions | ||
Length | 32.6 mm (1.28") | |
Width | 12.5 mm (0.49") | |
Height | 27.3 mm (1.08") | |
Weight (of servo itself) | 9 g (0.32 oz) | |
Weight (including horns and screws) | 15.1 g (0.53 oz) | |
Specs
