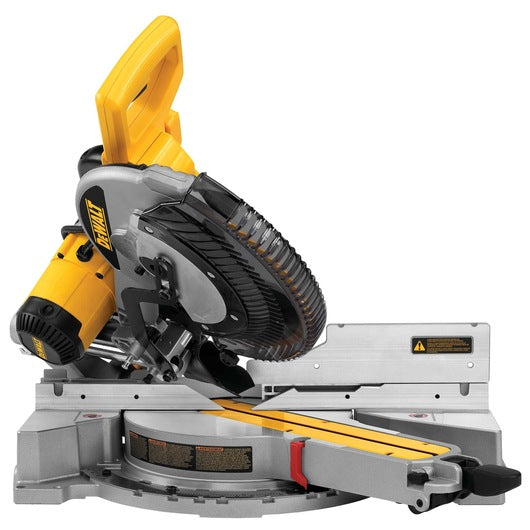

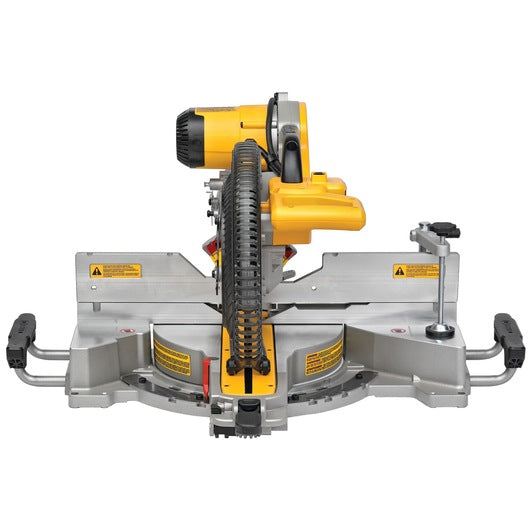

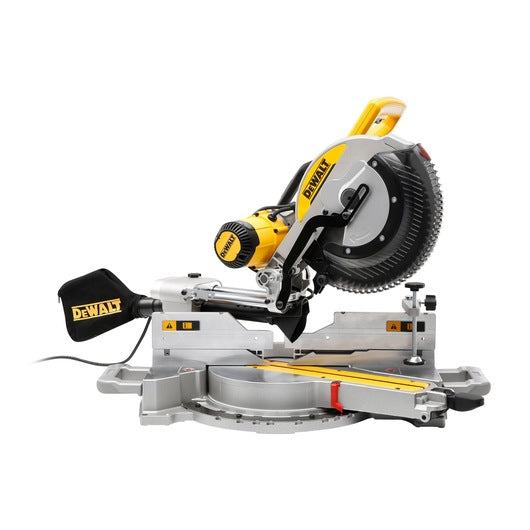

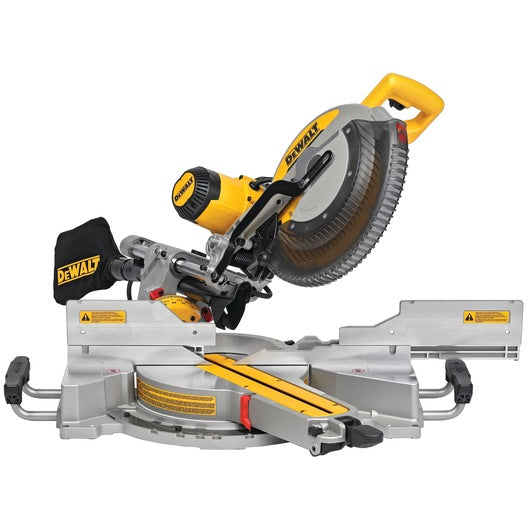

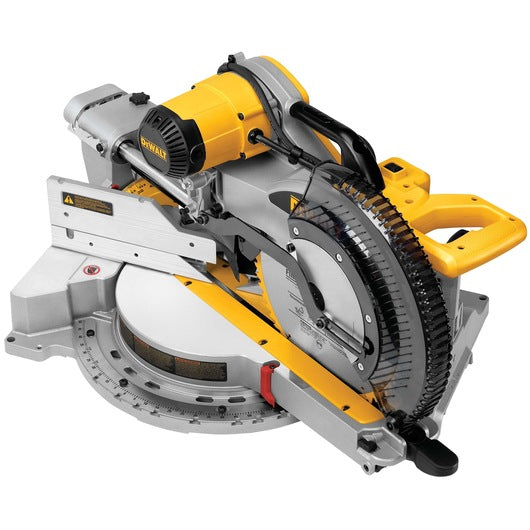

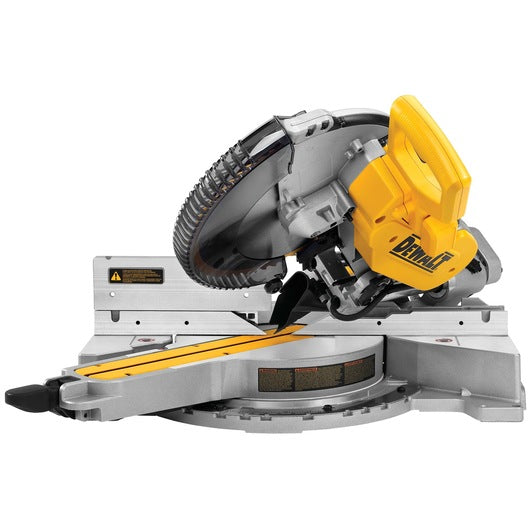

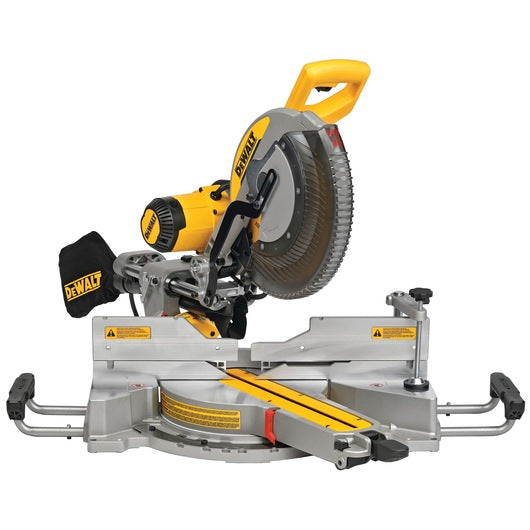

The 12 in. Double Bevel Sliding Compound Miter Saw has a 15 Amp motor and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication. Tall sliding fences support 7-1/2 in. of nested crown and 6-3/4 in. of base molding vertically. Exclusive Back Fence Design cuts up to 2x14 dimensional lumber at 90° increased miter capacity of 60° (R) and 50°(L) features durable stainless-steel miter detent plate with cam lock for repeatable accuracy with easy adjustments.

Features:

• Powerful 15 Amp, 3,800 rpm motor delivers extended power and durability
• Super-efficient dust collection system captures over 75% of dust generated
• Tall sliding fences support crown molding up to 7-1/2 in. nested and base molding up to 6-3/4 in. vertically against the fence while easily sliding out of the way for bevel cuts
• Exclusive back fence design cuts up to 2x14 dimensional lumber at 90° and 2x10 at 45°Adjustable stainless-steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
• Miters 60° to the right and 50° to the left providing increased capacity
• Oversized bevel scale makes bevel angle adjustments accurate and easy
• Compact, lightweight design (58 lbs.) allows for easy transport and storage
• Cam lock miter handle with detent override deliver quick and accurate miter angles
• Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
• Innovative gearbox and belt-drive design increases vertical cutting capacity

Applications:

• Cutting stair tread up to 14 in. cross cut (with back fence)
• Cutting crown molding vertically nested against fence
• Cutting base molding vertically against fence
• Cutting 2x material and precision cuts for woodworking

Includes:

• (1) DWS780 12 in Miter Saw
• (1) Blade Wrench
• (1) Dust Bag
• (1) Vertical Material Clamp
• (1) 12 in Carbide Blade
