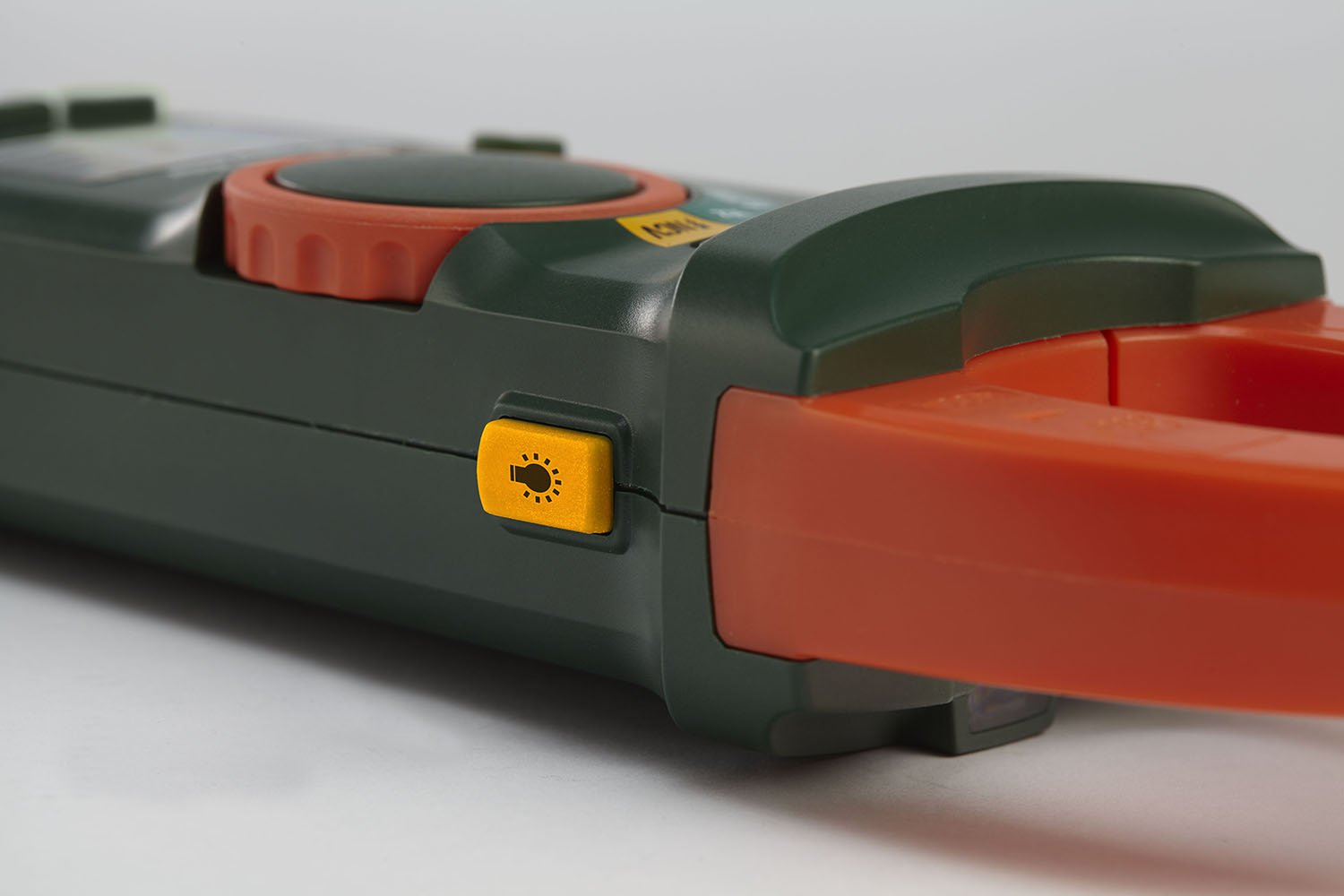

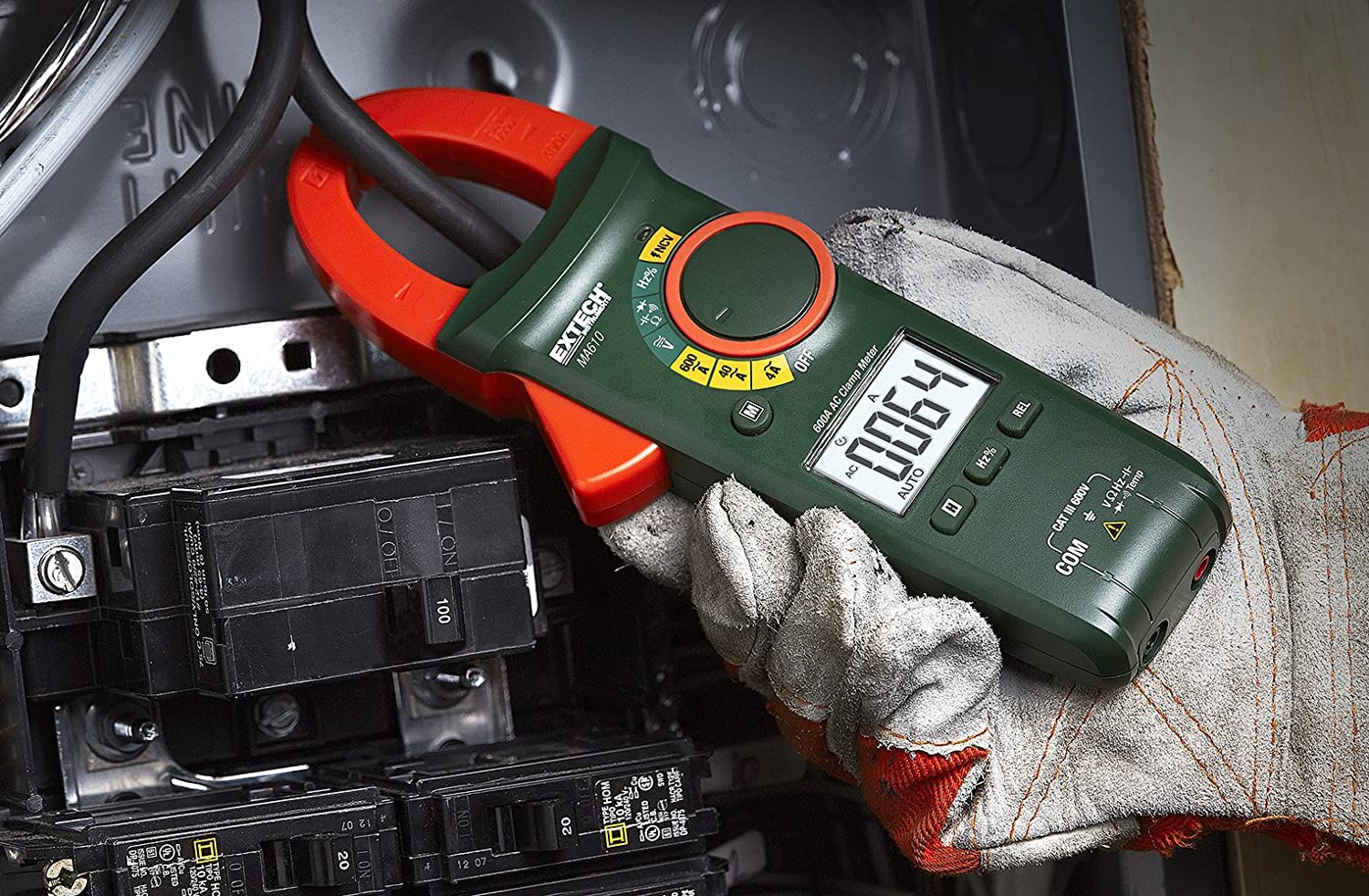

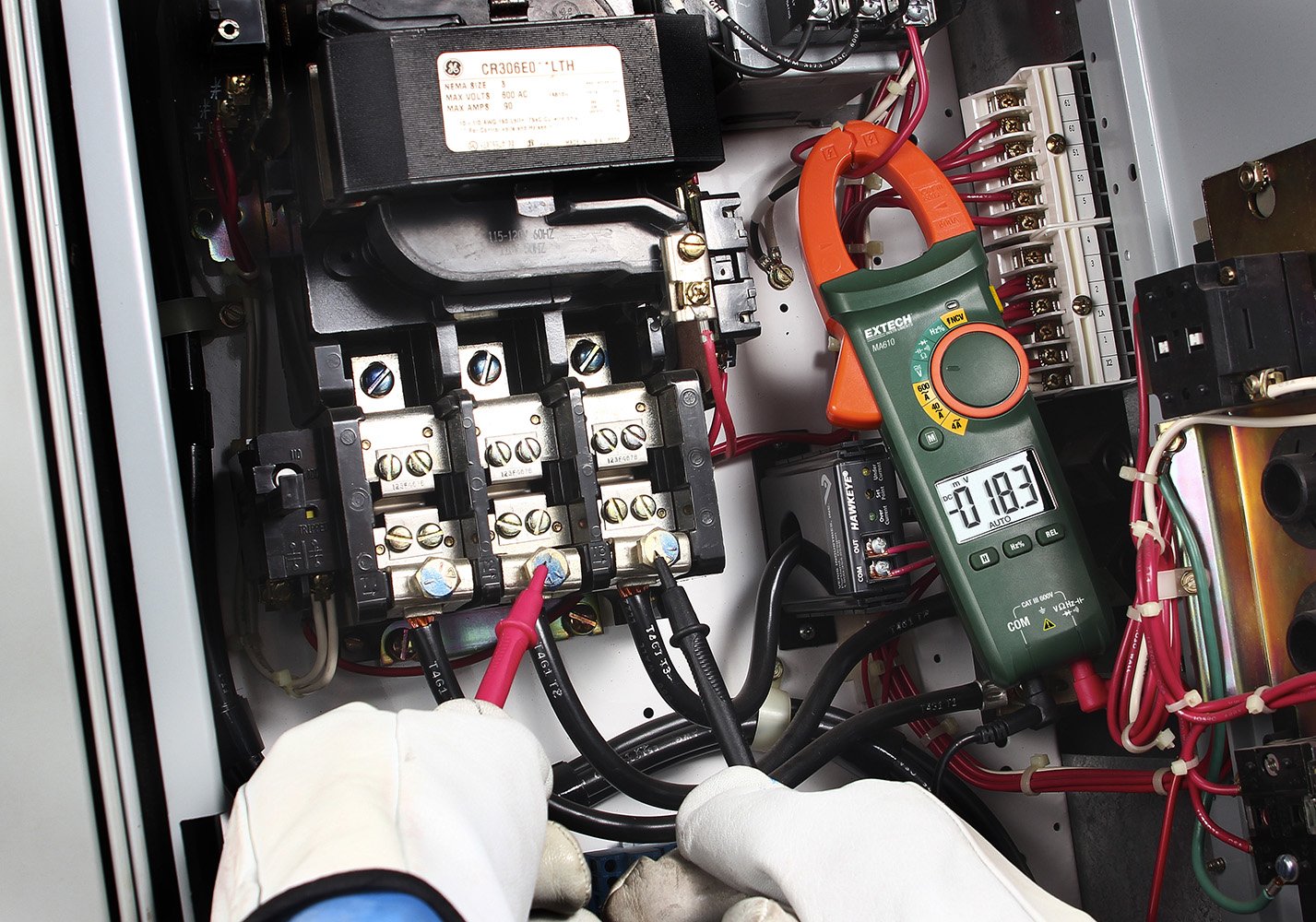

The MA610 is a fully loaded clamp meter with multimeter functions including AC Current, AC/DC Voltage, Resistance, Frequency, and Capacitance. It also has a built-in non-contact voltage (NCV) detector to quickly check circuits and wires for live voltages. It’s a pocket-sized meter with 1.2" (30mm) jaw that fits conductors up to 500MCM and is designed with a large backlit LCD display to view in dimly lit area.
Features:
- Pocket-sized meter with 1.2" (30mm) jaw size fits conductors up to 500MCM
- Built-in Non-Contact Voltage (NCV) detector
- MultiMeter functions include Resistance, Capacitance and Frequency
- Relative Mode for Capacitance
- Data Hold freezes reading on display
- Auto Power Off with disable and Low Battery indication
- Large backlit LCD display
Specifications:
- AC Current: 600.0A
- AC Current Basic Accuracy: ±2.0%
- AC Current Max Resolution: 1mA
- AC Voltage: 600V
- AC Voltage Basic Accuracy: ±1.2%
- AC Voltage Max Resolution: 1mV
- Capacitance: 100µF
- Capacitance Max Resolution: 0.01nF
- Continuity: Yes
- DC Voltage: 600V
- DC Voltage Basic Accuracy: ±0.8%
- DC Voltage Max Resolution: 0.1mV
- Diode Test: Yes
- Frequency: 1MHz
- Frequency Max Resolution: 0.01Hz
- Jaw Size: 1.2" (30mm), conductors up to 500MCM
- Non-Contact Voltage (NCV) Detector: 100 to 600VAC
- Resistance: 40MΩ
- Resistance Max Resolution: 0.1Ω
