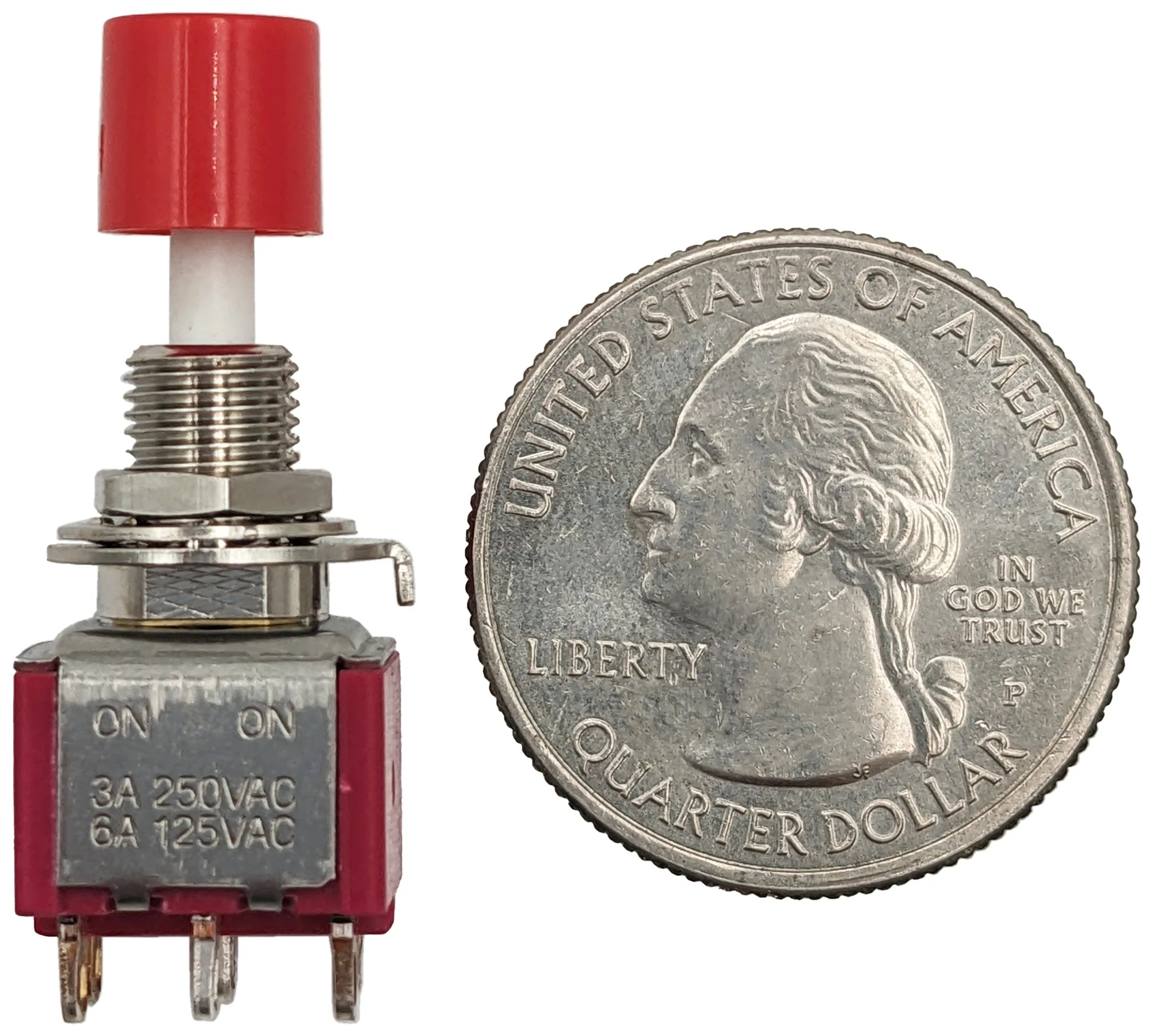

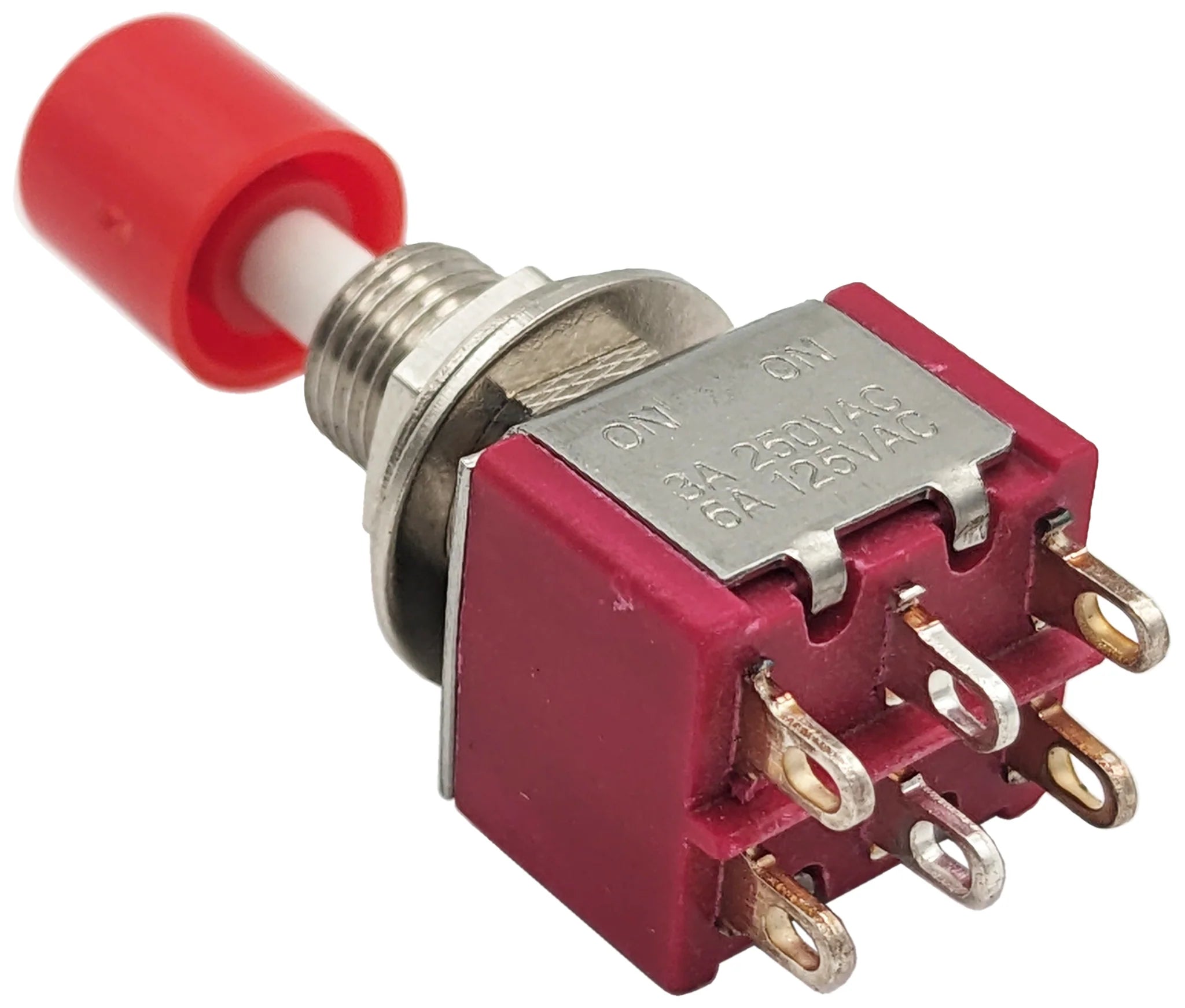

DPDT Alternate Action Pushbutton Switch - ON-ON Solder Lug Terminals - Perfect for Industrial Control Panels & DIY Electronics Projects
Sku: 72922231 in stock
$1.62
$2.95
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
17 people viewing this product right now!
Guranteed safe checkout
Description
- Circuit: DPDT
- Function: On-On
- Termination: Solder Lug (6 lugs)
- Fits 6mm diameter cutout
- Removable 7.5mm diameter red cap

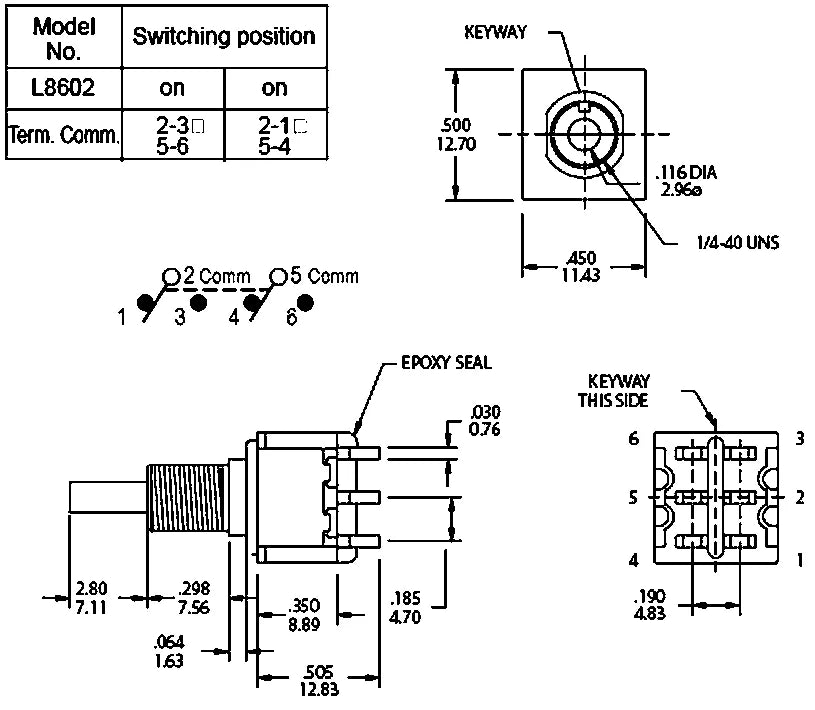

- Measures 12.8mm x 11.6mm x 31.9mm (height not including lugs)
- Perfect for instrumentation, telecommunications equipment, computer peripherals.
Specifications:
- Contact Rating: 6A@125VAC; 3A@250VAC
- Life Cycle: 50,000 cycles
- Contact Resistance: 10mΩ max. initial @2-4 VDC,100 mA
- Insulation Resistance: 1,000MΩ min.
- Dielectric Strength: 1,500V RMS @sea level
Datasheet
